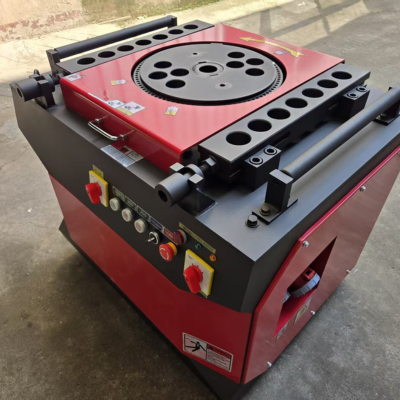

Bar Bending Machine GW 52
Bar Bending Machine GW 52
The machine features a fully enclosed gear box, separated from the working disk, ensuring no distortion even under heavy loads and preventing oil leakage while lifting the machine.
Gears, gear shafts, working disk, stop gauge, saddles, pile heads, and pile head bushes are made of forged high-quality alloyed steel with proper heat treatment (quenching/tempering/high-frequency) and a 2 mm thick external case to ensure high performance even under heavy loads and extended working life.

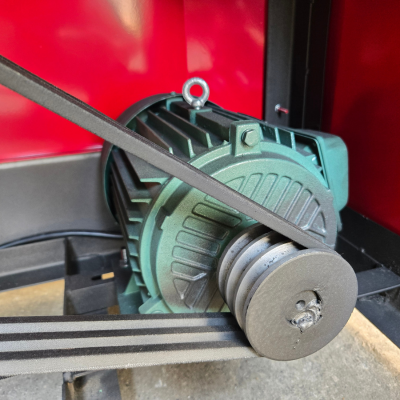

Equipped with a dust-proof brake motor and two limit switches to maintain the accuracy of the bending angle even after stopping and restarting.

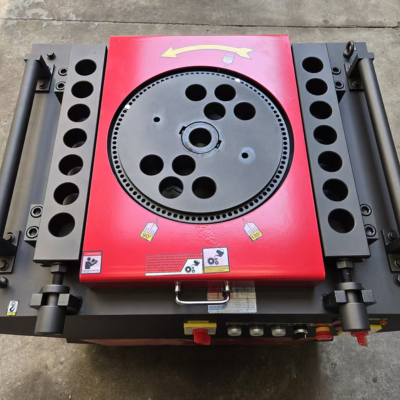

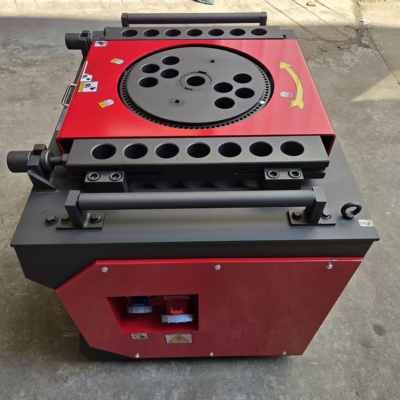

Insert-pin type disk and movable saddles allow precise adjustment of the bending angle.
CE Certified (2006/42/EC – 2006/95/EC).
| COMPONENTS | MATERIAL | HEAT TREATMENT | WEIGHT (Kg) | SIZES (mm) |
|---|---|---|---|---|
| MAIN-SHAFT GEAR | C45 (cast steel) | QUENCHING + TEMPERING 24°–45° | 7.8 | Φ335×(H)50 |
| CENTRAL SHAFT GEAR | C45 (cast steel) | QUENCHING + TEMPERING 24°–45° | 3.6 | Φ279×(H)40 |
| INPUT SHAFT | C45 | QUENCHING 24°–45° | 1.4 | Φ45×(H)250 |
| CENTRAL SHAFT | C45 | QUENCHING 24°–45° | 1.6 | Φ79×(H)163 |
| MAIN SHAFT | C45 | QUENCHING 24°–45° | 6.7 | Φ80×(H)238 |
| GEAR BOX | HT200 (cast iron) | — | — | — |
| WORKING DISK | C45 (forged steel) | QUENCHING 24°–28° | 19.6 | Φ350×(H)38 |
| WORK BENCH | Q235 (carbon struct. steel) | — | — | 810×700×8 |
| ⭐ All the machine components listed above have 1-Year Warranty ⭐ | ||||
| FLY WHEEL | HT200 (cast iron) | QUENCHING + TEMPERING 24°–28° | 10.9 | Φ300×(H)74 |
| SADDLES | C45 (forged steel) | QUENCHING + TEMPERING 24°–28° | 9.6 | 530×75×46 |
| STOP GAUGE | C45 | QUENCHING 24°–28° | 7.9 | 260×122×78 |
| PILE HEAD (2 pcs total) | Cr40 (cold rolled steel) | QUENCHING + TEMPERING 24°–45° | 0.8 | Φ47×(H)68 |
| PILE HEAD BUSHES (4 pcs total) | Cr40 (cold rolled steel) | QUENCHING + TEMPERING 24°–45° | 1.7 | Φ59×(H)78 |
| Model | Bending Range | Power Input | Voltage | Overall Size | Weight |
|---|---|---|---|---|---|
| GW42 | Round Bar Φ6-Φ34mm III-Class Bar Φ6-Φ32mm | 3KW-4P | 3 Phase: 220VAC / 380VAC / 415VAC | 850x775x840 mm | 295 Kgs |
| UNID42 | Round Bar Φ6-Φ34mm III-Class Bar Φ6-Φ32mm | 3KW-4P | 3 Phase: 220VAC / 380VAC / 415VAC | 860x970x800 mm | 395 Kgs |
| UNID50 | Round Bar Φ6-Φ38mm III-Class Bar Φ6-Φ36mm | 4KW-4P | 3 Phase: 220VAC / 380VAC / 415VAC | 940x935x885 mm | 445 Kgs |
| UNID52 | Round Bar Φ6-Φ42mm III-Class Bar Φ6-Φ40mm | 5.5KW-4P | 3 Phase: 220VAC / 380VAC / 415VAC | 940x935x885 mm | 495 Kgs |
| UNID50X | Round Bar Φ6-Φ40mm III-Class Bar Φ6-Φ38mm | 4KW-4P | 3 Phase: 220VAC / 380VAC / 415VAC | 850x900x900 mm | 735 Kgs |
| GW52 | Round Bar Φ6-Φ50mm III-Class Bar Φ6-Φ45mm | 4KW-4P | 3 Phase: 220VAC / 380VAC / 415VAC | 1120x1130x880 mm | 395 Kgs |
