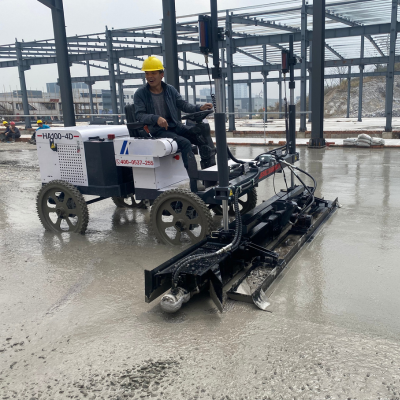

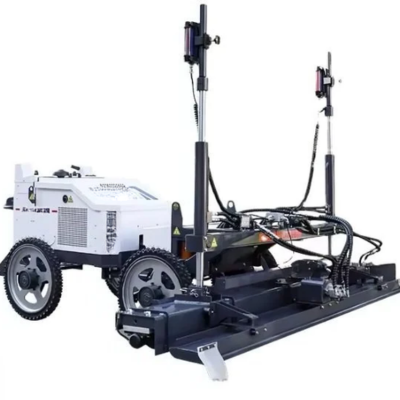

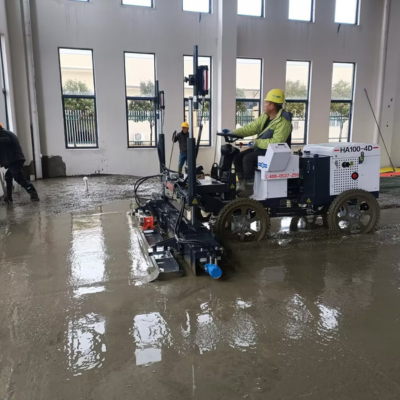

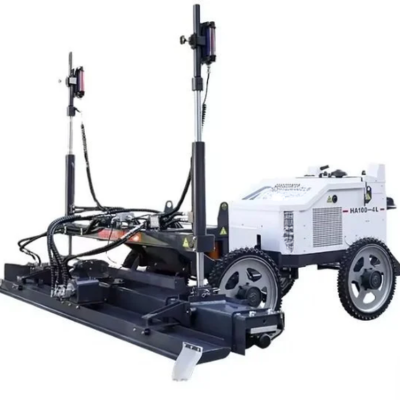

Laser Screed Machine
WS-940 Concrete Laser Screed – Technical Specifications
Product Overview
Product Name: Concrete Laser Screed
Model: WS-940
1. Engine
Engine Type: Honda GX690
Characteristics: Gasoline, Air-cooled, 4-stroke, 2-cylinder
Power: 18.4 kW / 25 HP
Fuel Tank Capacity: 20 L
Lubrication Oil Capacity: 1.9 L
2. Leveling System
Screed Width: 2.5 m
Paving Mode: Hydraulic screw conveyor paving
Paving Thickness: 5–35 cm
Vibrating System: Vibration motor
Excitation Force: 2000 N
Vibration Frequency: 50 Hz
3. Laser System
Configuration: Laser emitter & receiver with tripod
Brand: Trimble (Standard), Leica (Optional)
Laser Control: Microcomputer automatic leveling
Application Scope: Flat surface, slope, double slope (3D)
4. Driving System
Drive Type: Full hydraulic drive
Tyre Type: Solid puncture-proof & anti-skid
Tyre Widths: 9 cm & 20 cm
Tyre Configuration: 2 pairs (9 cm × 2, 20 cm × 2)
Wheel Track: 1230 mm
Wheel Base: 1290 mm
Walking Speed: 0–4.5 km/h
Speed Control: Stepless speed change
Turning: Hydraulic-assisted steering wheel
5. Cleaning System
Power Source: External motor
Theoretical Flow: 20 m³/h
Rated Pressure: 7 kg/cm²
6. Size & Weight
Dimensions: 3300 × 2900 × 1300 mm
Net Weight: 996 kg
| Description | Metric |
|---|---|
| Product Name | Concrete Laser Screed |
| Type | WS-940 |
| Engine Type | Honda GX690 |
| Characteristic | Gasoline, Air Cooled 4 Stroke, 2 Cylinder |
| Power | 18.4 KW / 25 HP |
| Fuel Tank Volume | 20 L |
| Lubrication Oil | 1.9 L |
| Screed Width | 2.5 M |
| Paving Mode | Hydraulic Screw Conveyor Paving |
| Paving Thickness | 5–35 CM |
| Laser System | Laser Emitter & Receiver, Tripod |
| Brand of Laser System | Trimble (Standard), Leica (Optional) |
| Laser Control | Microcomputer Automatic Leveling |
| Applicable Scope | Flat, Slope, Double Slope (3D) |
| Vibrating System | Vibration Motor |
| Excitation Force | 2000 N |
| Vibration | 50 Hz |
| Drive Type | Full Hydraulic Drive |
| Tyre Type | Solid Puncture-Proof & Anti-Skid |
| Tyre Width | 9 CM & 20 CM (2 Pairs) |
| Wheel Track | 1230 MM |
| Wheel Base | 1290 MM |
| Walking Speed | 0–4.5 km/h |
| Speed Control | Stepless Speed Change |
| Turning | Hydraulic Assistance, Steering Wheel |
| Power (Cleaning System) | External Motor |
| Theoretical Flow | 20 cbm/h |
| Rated Pressure | 7 kg/sq.cm |
| Outline Dimensions | 3300 × 2900 × 1300 mm |
| Net Weight | 996 Kg |
