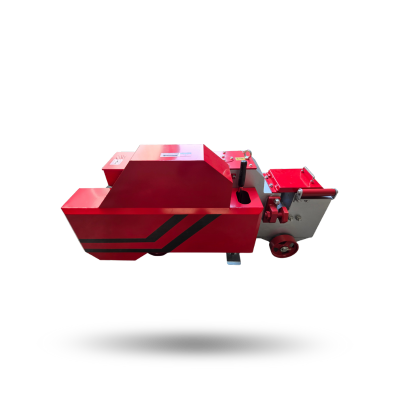

UNI 40 B Bar Bending Machine
The UNI 40 B is a compact and reliable bar bending machine designed for efficient and precise bending of reinforcement bars in construction and infrastructure projects. Built with a durable copper winding brake motor and robust body structure, it offers consistent performance for small to medium-scale operations.
Key Features:
Bar Bending Capacity: 6 mm to 32 mm diameter rebars
Operation: Fully automatic for ease of use and productivity
Motor Type: Copper winding with brake motor for enhanced safety and durability
Motor Power: 3.7 KW / 4 HP
Phase: Three-phase connection
Motor Speed: 1440 RPM for smooth operation
Voltage: 415V
Production Capacity: Up to 2 Tons per hour
Machine Weight: Approx. 320–330 Kg (based on build)
Dimensions: Approx. 850×800×880 mm
Applications:
Ideal for use in construction sites, civil engineering projects, and precast concrete yards where medium-scale bending is required with speed and accuracy.

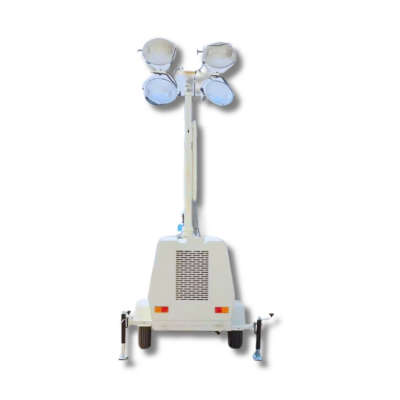

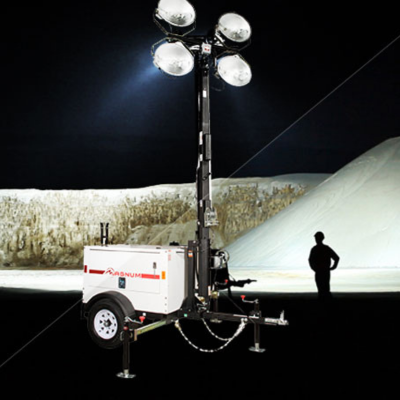

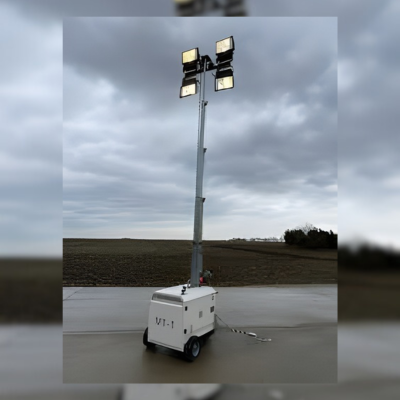

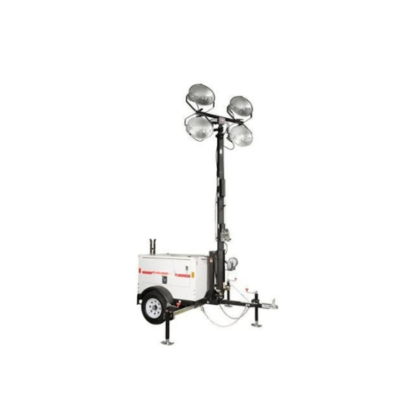

| Description | 168F (Mobile Lighting Tower) |
|---|---|
| Model | Mobile Lighting Tower |
| Engine Type | Diesel Air Cooled Engine |
| Engine Configuration | Single Cylinder, Air Cooled |
| Power Output | 9 HP |
| Frequency | 60 Hz |
| RPM | 3600 |
| Emission Standard | Euro 4 |
| Alternator Type | Brushless, Single Phase |
| Generator Isolation | H Class |
| Voltage Output | 230 V |
| Output Socket | One (230V 10A) |
| Continuous Working Time | 28 Hours |
| Oil Tank Capacity | 35 Litres |
| LED Lights | 4 × 300 W |
| Lifting Mechanism | Manual |
| Lifting Height | 8 Meters |
| Length | 2180 mm |
| Width | 1130 mm |
| Height | 2700 mm |
| Weight | 550 Kgs |
| Tyre Size | 13 Inch |
| Tilting Angle | < 10° |
