Portable Bar Bending Machine
Portable Bar Bending Machine

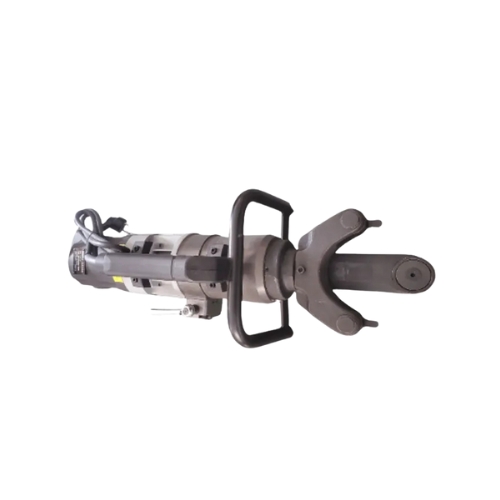

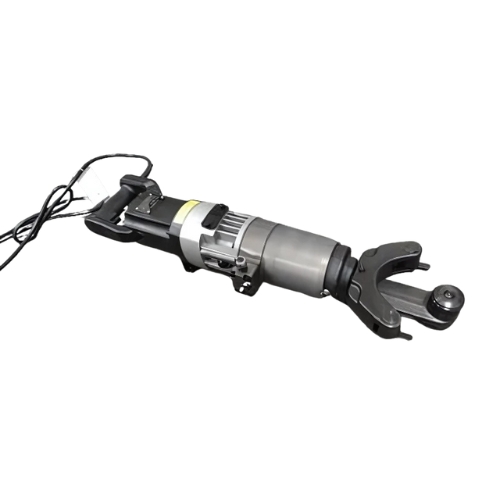

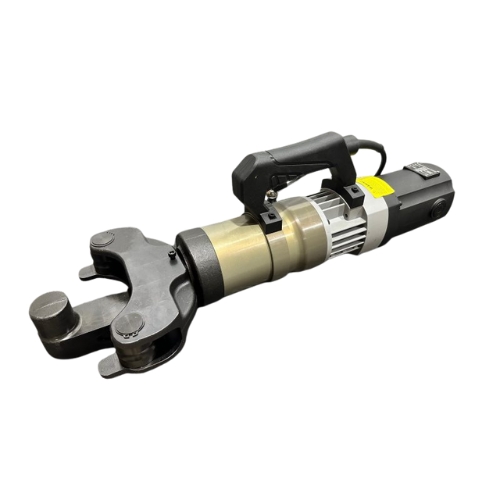

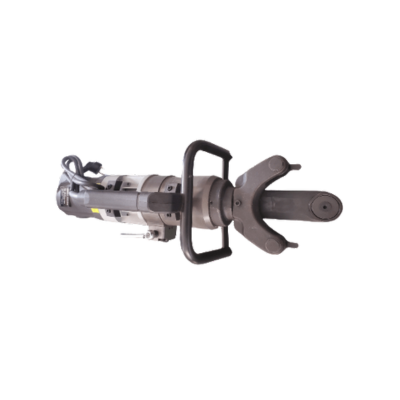

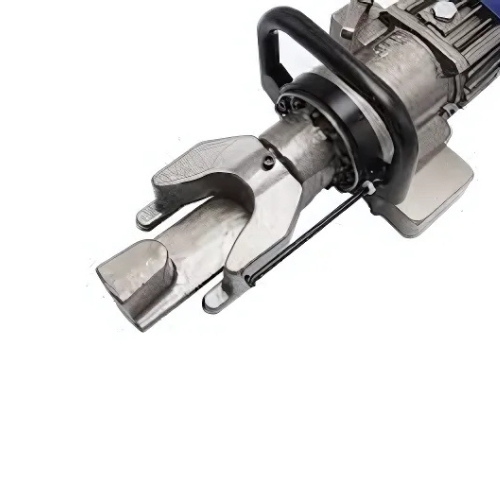

The Portable Bar Bending Machine is a lightweight, compact, and easy-to-carry solution designed for on-site bar bending operations. Ideal for small to medium construction projects, it combines mobility with efficiency, enabling quick and accurate bending of steel rebars without the need for bulky machinery. Built with a powerful copper winding motor and ergonomic design, this machine ensures reliable performance wherever it’s needed.
Key Features:
Bar Bending Capacity: 6 mm to 20 mm diameter rebars
Operation: Manual or semi-automatic, depending on model
Motor Type: Copper winding motor with brake system for safety and durability
Motor Power: 2.2 KW / 3 HP
Phase: Single-phase or Three-phase (optional)
Motor Speed: 1440 RPM for smooth operation
Voltage: 220V / 415V (model-specific)
Bending Angle: Adjustable from 0° to 180°
Machine Weight: Approx. 90–110 Kg
Dimensions: Approx. 600×500×600 mm
Applications:
Perfect for quick on-site bar bending in confined or remote areas such as residential buildings, small-scale projects, and repair works. Its portability allows workers to bend bars right where they need them, reducing downtime and improving efficiency.
| Description | UNI 42 B | UNI 50 B | UNI 42 P | UNI 52 P | UNI 20 | GWH-32 Spiral Bender | Portable Bar Bending Machine (RB25 / RB32) |
|---|---|---|---|---|---|---|---|
| Model | UNI 42 B | UNI 50 B | UNI 42 P | UNI 52 P | UNI 20 | GWH-32 | RB25 / RB32 |
| Operation | Automatic | Automatic | Automatic | Automatic | — | — | Hydraulic Type |
| Bar Bending Diameter | 6–32 MM | 6–42 MM | 6–32 MM | 6–42 MM | 4–16 MM | 6–28 MM | Max: 25 MM (RB25) / 32 MM (RB32) |
| Min Bending Dia | — | — | — | — | — | — | — (RB25) / 4 MM (RB32) |
| Motor Type | Copper Winding (Brake) | Copper Winding | Copper (Planetary Gear) | Copper (Planetary Gear) | — | — | — |
| Motor Power | 4 KW / 5 HP | 4.5 KW / 6 HP | 4 KW / 5 HP | 4 KW / 5 HP | 2.2 KW / 3 HP | 4 KW | 950 / 1350 W (RB25) / 1170 W (RB32) |
| Voltage | 415 V | 415 V | 415 V | 415 V | 415 / 220 V | 415 V | 230 / 110 / 220 V |
| Phase | Three | Three | Three | Three | Three / Single | — | — |
| Motor RPM | 1440 R/min | 1440 R/min | 1440 R/min | 1440 R/min | — | 1440 R/min | — |
| Bending Speed | — | — | — | — | — | 20 R/min | 5–8 times (RB25) / 8–10 times (RB32) |
| Weight (Net) | 440 KG | 490 KG | 400 KG | 470 KG | 110 KG | 320 KG | 28 KG (RB25) / 32 KG (RB32) |
| Gross Weight | — | — | — | — | — | — |
