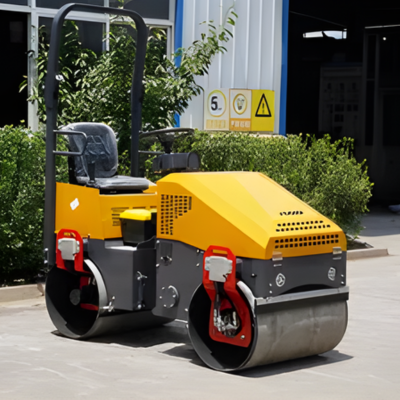

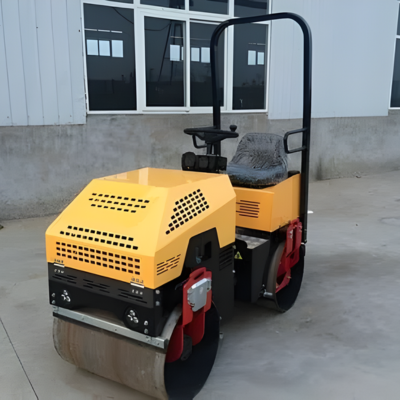

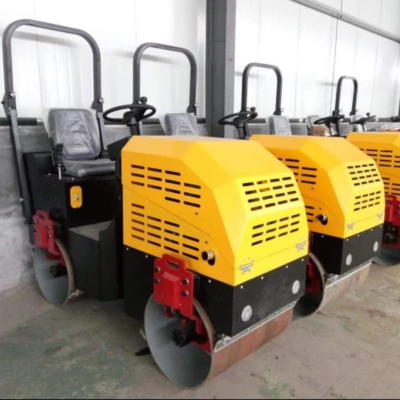

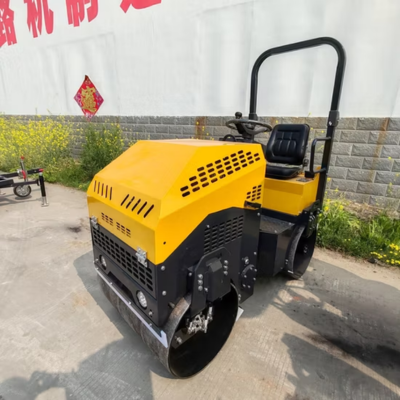

UNI 880 & UNI 1200 Ride-On Rollers

The UNI 880 and UNI 1200 are heavy-duty ride-on rollers designed for high-efficiency soil and asphalt compaction. With strong centrifugal force, reliable engines, and forward–reverse operation, these models deliver superior performance for road construction, pavements, and large civil projects.

UNI 880 – Key Features

• Weight: 800 kg

• Water Tank: 35 L, Oil Tank: 3.6 L

• Speed: 0–4 km/h, Turning Radius: 2000 mm

• Drive Model: Mechanical, Walking Mode: Forward & Back

• Wheel Size: 750×560 mm (Front), 500×560 mm (Rear)

• Centrifugal Force: 35 kN (3.5 Ton)

• Vibration Frequency: 70 Hz

• Engine: Greaves Air-Cooled Diesel (Diesel/Petrol options)

• Fuel Consumption: 200 g/kWh

• Compaction Area: 40,000 sq ft/hr

• Package Size: 2000×900×1400 mm

UNI 1200 – Key Features

• Weight: 1200 kg

• Water Tank: 60 L, Oil Tank: 19 L

• Speed: 0–5 km/h, Turning Radius: 2500 mm

• Drive Model: Hydraulic, Walking Mode: Forward & Back

• Wheel Size: 800×560 mm (Front & Rear)

• Centrifugal Force: 50 kN (5 Ton)

• Vibration Frequency: 70 Hz

• Engine: Imported Air-Cooled Diesel Engine

• Fuel Consumption: 280 g/kWh

• Compaction Area: 50,000 sq ft/hr

• Package Size: 1900×920×1500 mm

Both models are built for stability, high compaction output, and smooth operation—ideal for contractors seeking performance and durability on demanding job sites.
