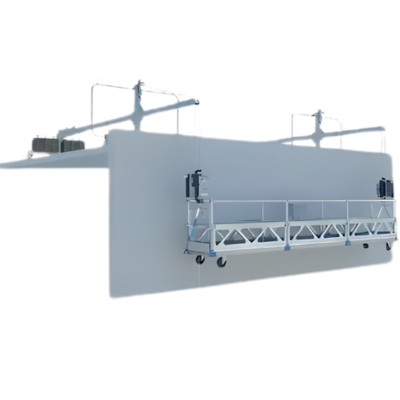

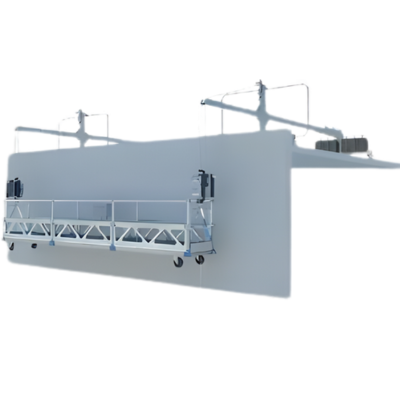

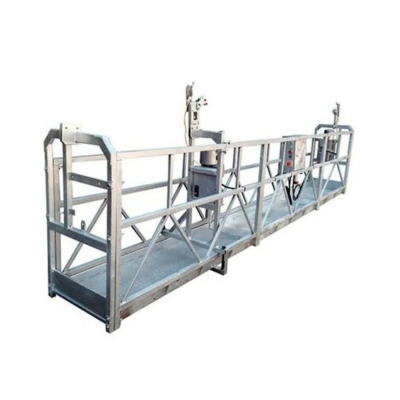

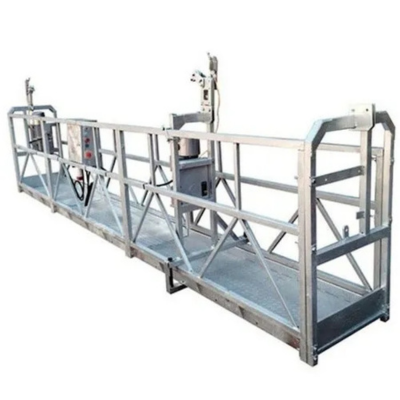

UNI 800 – Suspended Platform System
The UNI 800 is a durable suspended platform designed for façade work, construction, and maintenance at height. It offers adjustable projecting length (1300–1500 mm & 1200–1600 mm) and a strong platform length of 6000 mm. The system has a total weight of 210 kg (without counterweight) and features front and back basket fence heights of 1050 mm and 1200 mm.
It includes a LTD80 hoist with 1.8 kW power, 380V voltage, 8–10 m/min speed, 8 kN lifting force, and dual 48 kg hoist units. The LSF30 safety lock supports 30 kN impact force with 3″-8″ cable locking. The setup comes with a 4×31-9.1 steel wire rope, electric wire (4×50), safety rope, and suspension mechanism components.
The complete machine (without counterweight) weighs 800 kg and ensures strong performance, stability, and safety for elevated work.
| Specification | UNI 800 |
|---|---|
| Suspension Mechanism (mm) | 1300-1500 (adjusting distance 200) mm 1200-1600 (adjusting distance 100) mm 6000 |
| Weight | 210 kg (without counter weight) |
| Front Basket Fence Height | 1050 mm |
| Back Basket Fence Height | 1200 mm |
| Hoist |
Type: LTD80 Capacity: 1.8 kW Voltage: 380 V Speed: 8–10 m/min Rated Lifting Force: 8 KN Hoist Weight: 48 kg × 2 |
| Safety Box Specification |
Type: LSF30 Permission Force of Impact: 30 KN Locking Cable: 3″–8″ Weight: 5.5 kg × 2 |
| Electrical Control Box | 14 kg |
| Steel Wire Rope (4×31–09.1) | 4 rope × 25 kg |
| Electric Wire (4×50) | 22 kg |
| Safety Rope | 13 kg |
| Complete Machine (without counter weight) | 800 kg |
