Tamping Rammer Machine
UNI 40 B Bar Bending Machine
The UNI 40 B is a compact and reliable bar bending machine designed for efficient and precise bending of reinforcement bars in construction and infrastructure projects. Built with a durable copper winding brake motor and robust body structure, it offers consistent performance for small to medium-scale operations.
Key Features:
Bar Bending Capacity: 6 mm to 32 mm diameter rebars
Operation: Fully automatic for ease of use and productivity
Motor Type: Copper winding with brake motor for enhanced safety and durability
Motor Power: 3.7 KW / 4 HP
Phase: Three-phase connection
Motor Speed: 1440 RPM for smooth operation
Voltage: 415V
Production Capacity: Up to 2 Tons per hour
Machine Weight: Approx. 320–330 Kg (based on build)
Dimensions: Approx. 850×800×880 mm
Applications:
Ideal for use in construction sites, civil engineering projects, and precast concrete yards where medium-scale bending is required with speed and accuracy.
| Description | UNI100 (Electric Motor) | UNI100 (GX160 Honda Engine – RM80) |
|---|---|---|

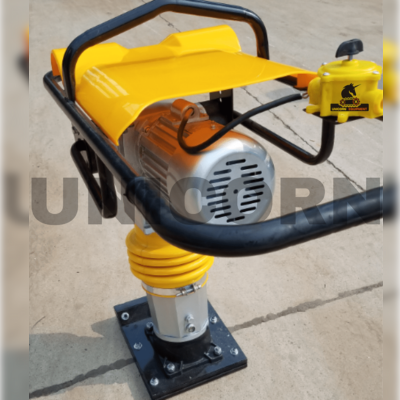

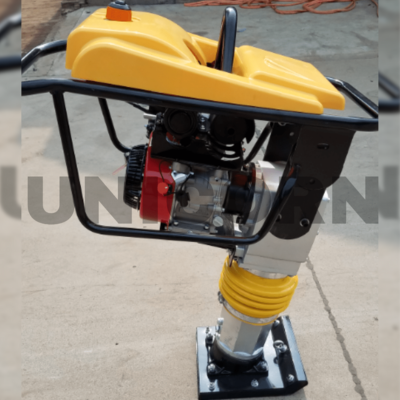

| Type | Rammer with Electric Motor (3P / 1P) | RM80 with GX160 Honda Engine |
| Model | UNI100 | UNI100 |
| Ramming Frequency | 600–700 times/min | 600–700 times/min |
| Advanced Speed | 10–13 m/min | 10–13 m/min |
| Bounce Height | 40–70 mm | 40–70 mm |
| Motor Power | 2.2 KW / 3 HP / 1 HP | NA |
| Voltage | 415 V / 220 V | NA |
| Net Torque | 7.618-ft (10.3 Nm) @ 2500 rpm | 7.618-ft (10.3 Nm) @ 2500 rpm |
| Gross Weight | 62 KG | 73 KG |
| Engine Type | NA | GX160 Honda Air-Cooled 4-Stroke OHV |
| Net Power Output | 4 HP @ 3600 rpm | 4 HP @ 3600 rpm |
